MTO-122 China with double rubber seals Slewing bearing MTO 122

Location：Home > News

MTO-122 China with double rubber seals Slewing bearing MTO 122

Release time: 2024-06-05

Click: 109

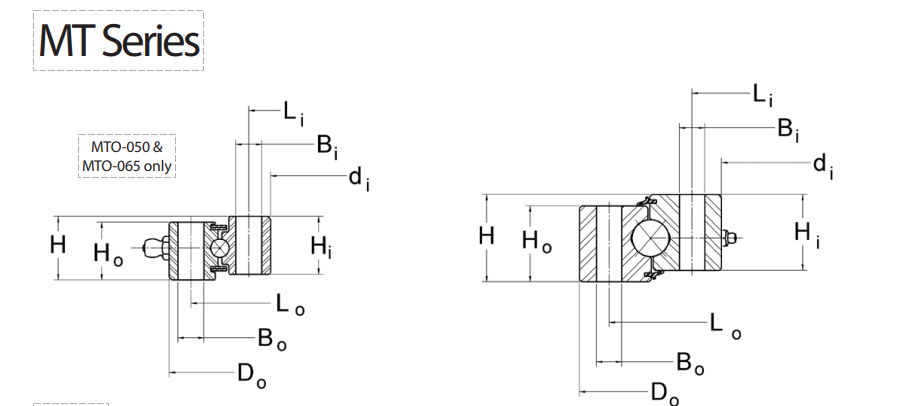

	Do	di	H	Hi/Ho	G	Lo	no	Bo	Li	ni	Bi	Cr
	(in)	(in)	(in)	(in)		(in)		(in)	(in)		(in)
					(lbs)
MTO-050	4.331	1.968	0.787	0.728	2	3.818	8	0.26	2.480	8	0.26	675
MTO-050T	4.331	1.968	0.787	0.728	2	3.818	8	M6	2.480	8	M6	675
MTO-065	5.315	2.559	0.866	0.787	4	4.724	8	0.354	3.149	8	0.354	1,075
MTO-065T	5.315	2.559	0.866	0.787	4	4.724	8	M8	3.149	8	M8	1,075
MTO-122	8.898	4.803	1.339	1.142	13	8.189	12	0.354	5.512	12	0.354	5,020
MTO-122T	8.898	4.803	1.339	1.142	13	8.189	12	M8	5.512	12	M8	5,020
MTO-143	9.803	5.630	1.339	1.142	15	8.937	12	0.433	6.496	12	0.433	8,950
MTO-143T	9.803	5.630	1.339	1.142	15	8.937	12	M10	6.496	12	M10	8,950
MTO-145	11.811	5.709	1.968	1.732	37	10.630	16	0.562	6.890	16	0.562	26,000
MTO-145T	11.811	5.709	1.968	1.732	37	10.630	16	5/8-11	6.890	16	5/8-11	26,000
MTO-145X	12.286	5.709	1.968	1.732	41	10.630	16	0.594	6.890	16	0.594	30,600
MTO-170	12.205	6.693	1.811	1.614	33	11.024	12	0.512	7.874	12	0.512	16,520
MTO-170T	12.205	6.693	1.811	1.614	33	11.024	12	M12	7.874	12	M12	16,520
MTO-210	14.370	8.268	1.575	1.496	38	13.190	16	0.562	9.449	20	0.562	44,500
MTO-210T	14.370	8.268	1.575	1.496	38	13.190	16	5/8-11	9.449	20	5/8-11	44,500
MTO-210X	14.686	8.268	1.968	1.732	48	13.190	16	0.594	9.449	20	0.594	52,100
MTO-265	16.535	10.433	1.968	1.732	54	15.354	18	0.562	11.614	24	0.562	62,000
MTO-265T	16.535	10.433	1.968	1.732	54	15.354	18	5/8-11	11.614	24	5/8-11	62,000
MTO-265X	17.086	10.433	1.968	1.732	61	15.354	18	0.594	11.614	24	0.594	71,900
*MTO-324T	20.486	12.750	2.062	2.022	105	18.875	20	5/8-11	14.375	20	5/8-11	102,400
MTO-324X	20.486	12.770	2.375	2.063	105	18.875	20	0.688	14.375	20	0.688	102,400

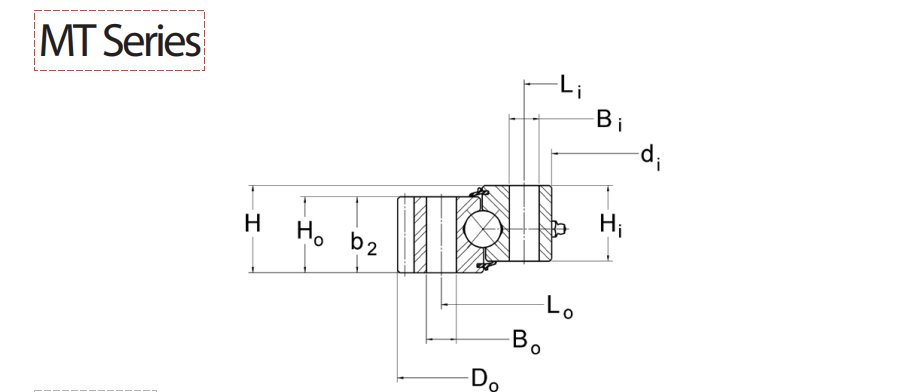

P/N	Do	di	H	Hi/Ho		Lo	no	Bo	Li	ni	Bi		D2	Pd	z2	b2	MAX GEAR
					APPROX.
											TOOTH FORM						TOOTH LOAD
	(in)	(in)	(in)	(in)		(in)		(in)	(in)		(in)		(in)			(in)		(ft-lbs)
					(lbs)
MTE-145	12.286	5.709	1.968	1.732	38	10.630	16	0.562	6.890	16	0.562	FS	12.000	5/7	60	1.732	7,140	26,000
MTE-145T	12.286	5.709	1.968	1.732	38	10.630	16	5/8-11	6.890	16	5/8-11	FS	12.000	5/7	60	1.732	7,140	26,000
MTE-145X	12.286	5.709	1.968	1.732	38	10.630	16	0.594	6.890	16	0.594	FS	12.000	5/7	60	1.732	7,140	30,600
MTE-210T	14.686	8.268	1.575	1.496	38	13.190	16	5/8-11	9.449	20	5/8-11	FS	14.400	5/7	72	1.496	5,810	44,500
MTE-210X	14.686	8.268	1.968	1.732	44	13.190	16	0.594	9.449	20	0.594	FS	14.400	5/7	72	1.732	7,290	52,100
MTE-265	17.086	10.433	1.968	1.732	57	15.354	18	0.562	11.614	24	0.562	FS	16.800	5/7	84	1.732	7,330	62,000
4 MTE-265T	17.086	10.433	1.968	1.732	57	15.354	18	5/8-11	11.614	24	5/8-11	FS	16.800	5/7	84	1.732	7,330	62,000
MTE-265X	17.086	10.433	1.968	1.732	57	15.354	18	0.594	11.614	24	0.594	FS	16.800	5/7	84	1.732	7,330	71,900
*MTE-324T	20.486	12.750	2.062	2.022	98	18.875	20	5/8-11	14.375	20	5/8-11	FS	20.200	5/7	101	2.022	8,700	102,400
MTE-324X	20.486	12.770	2.375	2.063	99	18.875	20	0.688	14.375	20	0.688	FS	20.200	5/7	101	2.063	8,863	102,400
MTE-415	24.650	16.250	2.375	2.063	132	22.250	16	0.813	17.750	20	0.813	SD	24.250	4	97	2.063	10,420	159,200
MTE-415T	24.650	16.250	2.375	2.063	132	22.250	16	3/4-10	17.750	20	3/4-10	SD	24.250	4	97	2.063	10,420	159,200
MTE-470	26.900	18.500	2.375	2.063	147	24.500	18	0.813	20.000	24	0.813	SD	26.500	4	106	2.063	10,460	191,600
MTE-470T	26.900	18.500	2.375	2.063	147	24.500	18	3/4-10	20.000	24	3/4-10	SD	26.500	4	106	2.063	10,460	191,600
MTE-540	29.650	21.250	2.375	2.063	163	27.250	24	0.813	22.750	28	0.813	SD	29.250	4	117	2.063	10,520	232,000
MTE-540T	29.650	21.250	2.375	2.063	163	27.250	24	3/4-10	22.750	28	3/4-10	SD	29.250	4	117	2.063	10,520	232,000
MTE-590	33.534	23.125	2.875	2.563	283	30.625	18	0.938	24.875	24	0.938	SD	33.000	3	99	2.563	17,290	338,700
MTE-590T	33.534	23.125	2.875	2.563	283	30.625	18	7/8-9	24.875	24	7/8-9	SD	33.000	3	99	2.563	17,290	338,700
MTE-705	38.201	27.750	2.875	2.563	325	35.250	24	0.938	29.50	28	0.938	SD	37.667	3	113	2.563	17,390	443,200
MTE-705T	38.201	27.750	2.875	2.563	325	35.250	24	7/8-9	29.50	28	7/8-9	SD	37.667	3	113	2.563	17,390	443,200
MTE-730	41.85	28.750	3.250	2.880	491	38.000	20	1.063	31.00	24	1.063	SD	41.200	2.5	103	2.630	21,290	588,000
MTE-730T	41.85	28.750	3.250	2.880	491	38.000	20	1-8	31.00	24	1-8	SD	41.200	2.5	103	2.630	21,290	588,000
MTE-870	47.444	34.250	4.250	3.875	771	43.875	24	1.188	36.25	28	1.188	SD	46.800	2.5	117	3.875	31,620	873,800
MTE-870T	47.444	34.250	4.250	3.875	771	43.875	24	1 1/8-7	36.25	28	1 1/8-7	SD	46.800	2.5	117	3.875	31,620	873,800
