666432 Angular Contact Ball Bearings Manufacturer 160*400*264MM

Release time: 2024-05-28  Click: 77

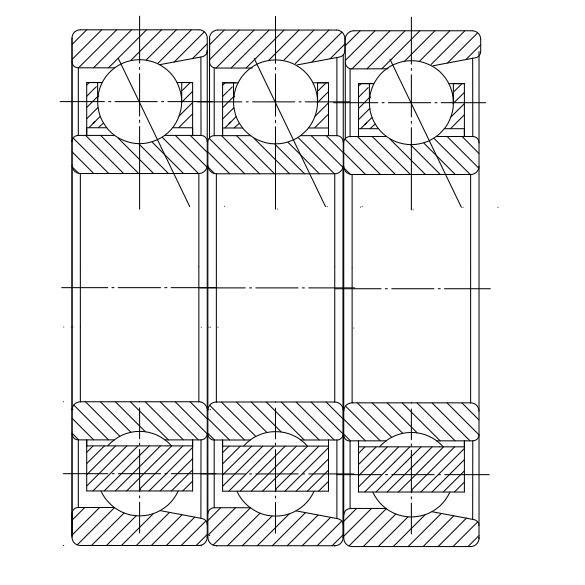

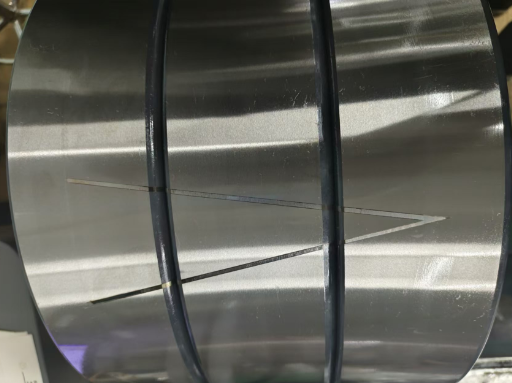

The 666432 bearing produced by Luoyang HUANA Precision Bearing Technology Co., Ltd. is a high-precision paired contact ball bearing

Precision:P5, P4

Contact angle:B 40

Brass cage

Material: Bearing steelGCR15SIMN

Used for high-speed working conditions

Long term export to the German market


Model

666432

Type

Paired Angular Contact Ball Bearing

Bore diameter (d)

160 mm

Outside diameter (D)

400 mm

Thickness (B)

88*3 mm

Reference speed

1100 r/min

Limiting speed

1600 r/min

Basic dynamic load rating

1350kN

Basic static load rating

1800 kN

Weight

62*3 KG

QQ图片20240528153022
