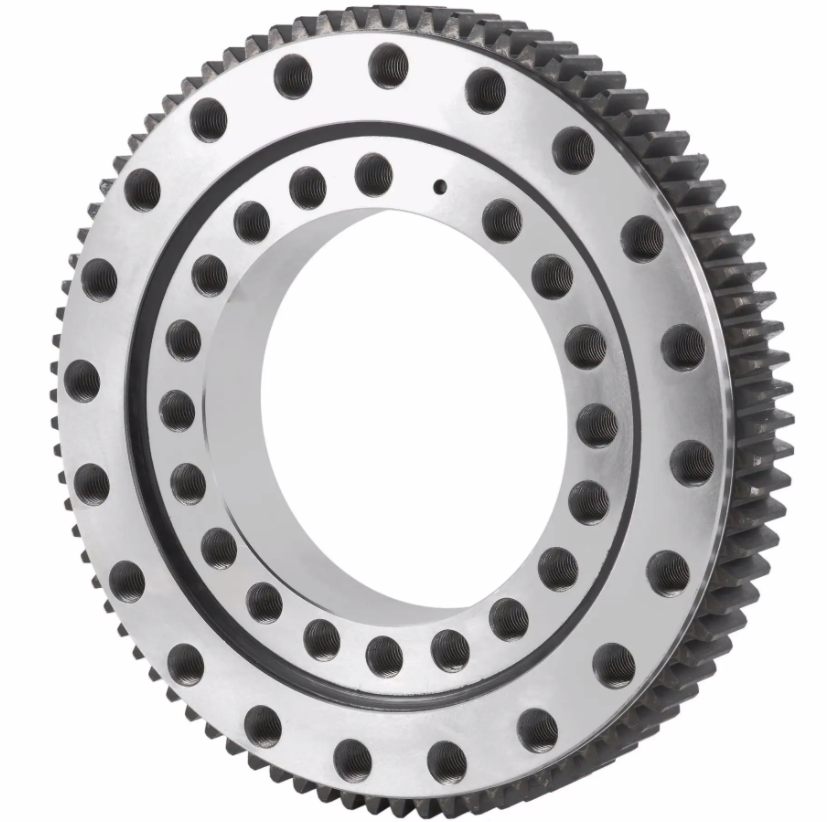

KDN.HN.T01-00500EAA TT-External Tooth Series China Manufacturer HN.T01 00500EAA
KDN.HN.T01-00500EAA TT-External Tooth Series China Manufacturer HN.T01 00500EAA
Release time:
2024-06-13
Click:
203
| NO GEAR |
| Dimensions | Basic load ratings | Static torque | Mass | Attachment holes | Designation | HUANA Bearing |
|
|
| radial dynamic | moment dynamic | radial static | axial static | moment static | Inner ring | Outer ring |
|
|
| d2 | D2 | d | D | CK | CM | C0 | C0a | C0M | J | no. x α [°] | J1 | no. x β [°] |
|
|
| in | in | in | in | lbf | lbf·in | lbf | lbf | lbf·in | lbf·in | lb | in | – | in | – |
|
|
| 2.148 | 2.356 | 1.5 | 3 | 520 | 440 | 680 | 1 710 | 770 | 3.4 | 0.35 | 1.813 | 6 x 60 | 2.688 | 8 x 45 | T01-00225PAA | HN.T01-00225PAA |
|
|
| 2.648 | 2.856 | 2 | 3.5 | 580 | 600 | 830 | 2 090 | 1 150 | 4.4 | 0.43 | 2.313 | 8 x 45 | 3.188 | 10 x 36 | T01-00275PAA | HN.T01-00275PAA |
|
|
| 3.148 | 3.356 | 2.5 | 4 | 640 | 780 | 990 | 2 470 | 1 600 | 5.5 | 0.5 | 2.813 | 9 x 40 | 3.688 | 12 x 30 | T01-00325PAA | HN.T01-00325PAA |
|
|
| 3.648 | 3.856 | 3 | 4.5 | 700 | 980 | 1 140 | 2 850 | 2 130 | 6.5 | 0.59 | 3.313 | 10 x 36 | 4.188 | 14 x 25.71 | T01-00375PAA | HN.T01-00375PAA |
|
|
| 4.148 | 4.356 | 3.5 | 5 | 750 | 1 200 | 1 290 | 3 220 | 2 740 | 7.4 | 0.67 | 3.813 | 12 x 30 | 4.688 | 15 x 24 | T01-00425PAA | HN.T01-00425PAA |
|
|
| 4.398 | 4.606 | 3.75 | 5.25 | 780 | 1 320 | 1 370 | 3 410 | 3 070 | 7.9 | 0.7 | 4.063 | 12 x 30 | 4.938 | 16 x 22.5 | T01-00450PAA | HN.T01-00450PAA |
|
|
| 4.648 | 4.856 | 4 | 5.5 | 810 | 1 440 | 1 440 | 3 600 | 3 420 | 8.5 | 0.74 | 4.313 | 14 x 25.71 | 5.188 | 16 x 22.5 | T01-00475PAA | HN.T01-00475PAA |
|
|
| 4.898 | 5.106 | 4.25 | 5.75 | 830 | 1 560 | 1 520 | 3 790 | 3 790 | 9 | 0.78 | 4.563 | 14 x 25.71 | 5.348 | 18 x 20 | T01-00500PAA | HN.T01-00500PAA |
|
|
| 5.148 | 5.356 | 4.5 | 6 | 860 | 1 690 | 1 590 | 3 980 | 4 180 | 9.5 | 0.82 | 4.813 | 15 x 24 | 5.688 | 18 x 20 | T01-00525PAA | HN.T01-00525PAA |
|
|
| 5.648 | 5.856 | 5 | 6.5 | 910 | 1 950 | 1 750 | 4 360 | 5 020 | 10.4 | 0.89 | 5.313 | 16 x 22.5 | 6.188 | 20 x 18 | T01-00575PAA | HN.T01-00575PAA |
|
|
| 6.148 | 6.356 | 5.5 | 7 | 950 | 2 030 | 1 900 | 4 740 | 5 930 | 11.3 | 0.98 | 5.813 | 18 x 20 | 6.688 | 22 x 16.36 | T01-00625PAA | HN.T01-00625PAA |
|
|
| 6.648 | 6.856 | 6 | 7.5 | 1 000 | 2 530 | 2 050 | 5 120 | 6 910 | 12.2 | 1.05 | 6.313 | 20 x 18 | 7.188 | 22 x 16.36 | T01-00675PAA | HN.T01-00675PAA |
|
|
| INTERNAL GEAR |
| Dimensions | Basic load ratings | Static torque | Mass | Attachment holes | Gear | Designation | HUANA Bearing |
| radial dynamic | moment dynamic | radial static | axial static | moment static | Inner ring | Outer ring | J2 | Nr. of teeth |
| d2 | D2 | d | D | CK | CM | C0 | C0a | C0M | J | no. x α [°] | J1 | no. x β [°] |
| in | in | in | in | lbf | lbf·in | lbf | lbf | lbf·in | lbf·in | lb | in | – | in | – | in | – |
| 2.148 | 2.356 | 1.422 | 3 | 520 | 440 | 680 | 1 710 | 770 | 3.4 | 0.35 | 2.813 | 6 x 60 | 2.688 | 8 x 45 | 1.453 | 93 | T01-00225NAA | HN.T01-00225NAA |
| 2.648 | 2.856 | 1.922 | 3.5 | 580 | 600 | 830 | 2 090 | 1 150 | 4.4 | 0.43 | 2.313 | 8 x 45 | 3.188 | 10 x 36 | 1.953 | 125 | T01-00275NAA | HN.T01-00275NAA |
| 3.148 | 3.856 | 2.422 | 4 | 640 | 780 | 990 | 2 470 | 1 600 | 5.5 | 0.5 | 2.813 | 9 x 40 | 3.688 | 12 x 30 | 2.453 | 157 | T01-00325NAA | HN.T01-00325NAA |
| 3.648 | 3.856 | 2.922 | 4.5 | 700 | 980 | 1 140 | 2 850 | 2 130 | 6.5 | 0.59 | 3.313 | 10 x 36 | 4.188 | 14 x 25.71 | 2.953 | 189 | T01-00375NAA | HN.T01-00375NAA |
| 4.148 | 4.356 | 3.422 | 5 | 750 | 1 200 | 1 290 | 3 220 | 2 740 | 7.4 | 0.67 | 3.813 | 12 x 30 | 4.688 | 15 x 24 | 3.453 | 221 | T01-00425NAA | HN.T01-00425NAA |
| 4.398 | 4.606 | 3.672 | 5.25 | 780 | 1 320 | 1 370 | 3 410 | 3 070 | 7.9 | 0.7 | 4.063 | 12 x 30 | 4.938 | 16 x 22.5 | 3.703 | 237 | T01-00450NAA | HN.T01-00450NAA |
| 4.648 | 4.856 | 3.922 | 5.5 | 810 | 1 440 | 1 440 | 3 600 | 3 420 | 8.5 | 0.74 | 4.313 | 14 x 25.71 | 5.188 | 16 x 22.5 | 3.953 | 253 | T01-00475NAA | HN.T01-00475NAA |
| 4.898 | 5.106 | 4.172 | 5.75 | 830 | 1 560 | 1 520 | 3 790 | 3 790 | 9 | 0.78 | 4.563 | 14 x 25.71 | 5.348 | 18 x 20 | 4.203 | 269 | T01-00500NAA | HN.T01-00500NAA |
| 5.148 | 5.356 | 4.422 | 6 | 860 | 1 690 | 1 590 | 3 980 | 4 180 | 9.5 | 0.82 | 4.813 | 15 x 24 | 5.688 | 18 x 20 | 4.453 | 285 | T01-00525NAA | HN.T01-00525NAA |
| 5.648 | 5.856 | 4.922 | 6.5 | 910 | 1 950 | 1 750 | 4 360 | 5 020 | 10.4 | 0.89 | 5.313 | 16 x 22.5 | 6.188 | 20 x 18 | 4.953 | 317 | T01-00575NAA | HN.T01-00575NAA |
| 6.148 | 6.356 | 5.422 | 7 | 950 | 2 030 | 1 900 | 4 740 | 5 930 | 11.3 | 0.98 | 5.813 | 18 x 20 | 6.688 | 22 x 16.36 | 5.453 | 349 | T01-00625NAA | HN.T01-00625NAA |
| 6.648 | 6.856 | 5.922 | 7.5 | 1 000 | 2 530 | 2 050 | 5 120 | 6 910 | 12.2 | 1.05 | 6.313 | 20 x 18 | 7.188 | 22 x 16.36 | 5.953 | 381 | T01-00675NAA | HN.T01-00675NAA |
| EXTERNAL GEAR |
| Dimensions | Basic load ratings | Static torque | Mass | Attachment holes | Gear | Designation | HUANA Bearing |
| radial dynamic | moment dynamic | radial static | axial static | moment static | Inner ring | Outer ring | J3 | Nr. of teeth |
| d2 | D2 | d | D | CK | CM | C0 | C0a | C0M | J | no. x α [°] | J1 | no. x β [°] |
| in | in | in | in | lbf | lbf·in | lbf | lbf | lbf·in | lbf·in | lb | in | – | in | – | in | – |
| 2.148 | 2.356 | 1.5 | 3.078 | 520 | 440 | 680 | 1 710 | 770 | 3.4 | 0.35 | 1.813 | 6 x 60 | 2.688 | 8 x 45 | 3.047 | 195 | T01-00225EAA | HN.T01-00225EAA |
| 2.648 | 2.856 | 2 | 3.578 | 580 | 600 | 830 | 2 090 | 1 150 | 4.4 | 0.43 | 2.313 | 8 x 45 | 3.188 | 10 x 36 | 3.547 | 227 | T01-00275EAA | HN.T01-00275EAA |
| 3.148 | 3.356 | 2.5 | 4.078 | 640 | 780 | 990 | 2 470 | 1 600 | 5.5 | 0.5 | 2.813 | 9 x 40 | 3.688 | 12 x 30 | 4.047 | 259 | T01-00325EAA | HN.T01-00325EAA |
| 3.648 | 3.856 | 3 | 4.578 | 700 | 980 | 1 140 | 2 850 | 2 130 | 6.5 | 0.59 | 3.313 | 10 x 36 | 4.188 | 14 x 25.71 | 4.547 | 291 | T01-00375EAA | HN.T01-00375EAA |
| 4.148 | 4.356 | 3.5 | 5.078 | 750 | 1 200 | 1 290 | 3 220 | 2 740 | 7.4 | 0.67 | 3.813 | 12 x 30 | 4.688 | 15 x 24 | 5.047 | 323 | T01-00425EAA | HN.T01-00425EAA |
| 4.398 | 4.606 | 3.75 | 5.328 | 780 | 1 320 | 1 370 | 3 410 | 3 070 | 7.9 | 0.7 | 4.063 | 12 x 30 | 4.938 | 16 x 22.5 | 5.297 | 339 | T01-00450EAA | HN.T01-00450EAA |
| 4.648 | 4.856 | 4 | 5.578 | 810 | 1 440 | 1 440 | 3 600 | 3 420 | 8.5 | 0.74 | 4.313 | 14 x 25.71 | 5.188 | 16 x 22.5 | 5.547 | 355 | T01-00475EAA | HN.T01-00475EAA |
| 4.898 | 5.106 | 4.25 | 5.828 | 830 | 1 560 | 1 520 | 3 790 | 3 790 | 9 | 0.78 | 4.563 | 14 x 25.71 | 5.438 | 18 x 20 | 5.797 | 371 | T01-00500EAA | HN.T01-00500EAA |
| 5.148 | 5.356 | 4.5 | 6.078 | 860 | 1 690 | 1 590 | 3 980 | 4 180 | 9.5 | 0.82 | 4.813 | 15 x 24 | 5.688 | 18 x 20 | 6.047 | 387 | T01-00525EAA | HN.T01-00525EAA |
| 5.648 | 5.856 | 5 | 6.578 | 910 | 1 950 | 1 750 | 4 360 | 5 020 | 10.4 | 0.89 | 5.313 | 16 x 22.5 | 6.188 | 20 x 18 | 6.547 | 419 | T01-00575EAA | HN.T01-00575EAA |
| 6.148 | 6.356 | 5.5 | 7.078 | 950 | 2 030 | 1 900 | 4 740 | 5 930 | 11.3 | 0.98 | 5.813 | 18 x 20 | 6.688 | 22 x 16.36 | 7.047 | 451 | T01-00625EAA | HN.T01-00625EAA |
| 6.648 | 6.856 | 6 | 7.578 | 1 000 | 2 530 | 2 050 | 5 120 | 6 910 | 12.2 | 1.05 | 6.313 | 20 x 18 | 7.188 | 22 x 16.36 | 7.547 | 483 | T01-00675EAA | HN.T01-00675EAA |
