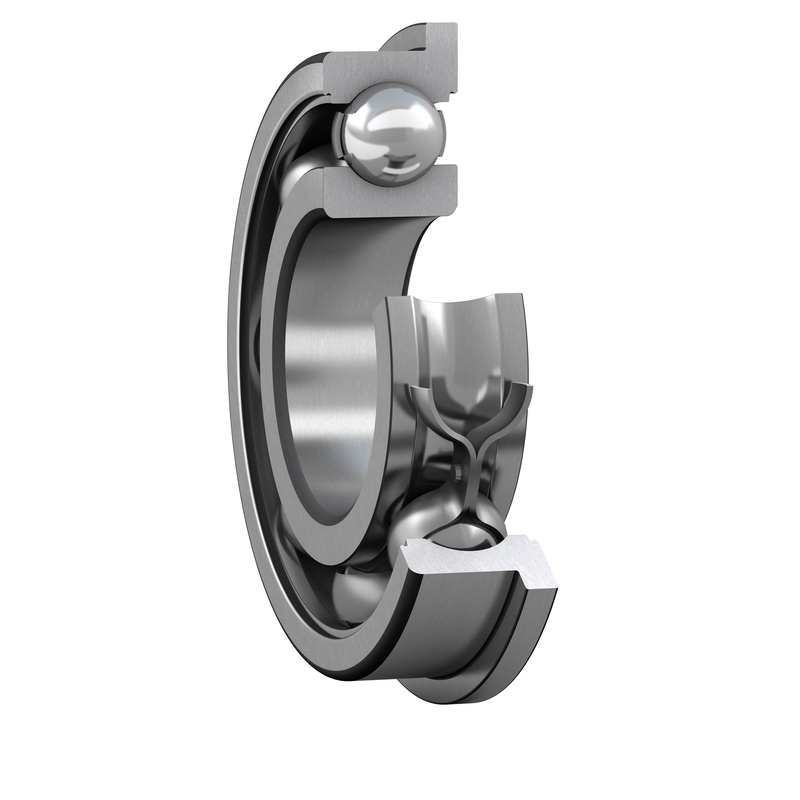

Product model | D/W R0 R |
d | 1.191 mm |
D | 3.967 mm |
B | 1.588 mm |
Limiting speed | 140000 r/min |
d1 | ≈2.15 mm |
D1 | ≈3.05 mm |
D2 | ≈3.05 mm |
D3 | 5.156 mm |
C | 0.33 mm |
Chamfer size (r1,2) | min.0.1 mm |
da | min.2 mm |
ra | max.0.1 mm |
pu | 0.001 kN |
Reference speed | 220 000 r/min |
kr | 0.02 |
f0 | 6.4 |
Radial runout | National Standard |
Dimensional tolerance | National Standard |
