D/W R0-2Z/Deep groove ball bearing/

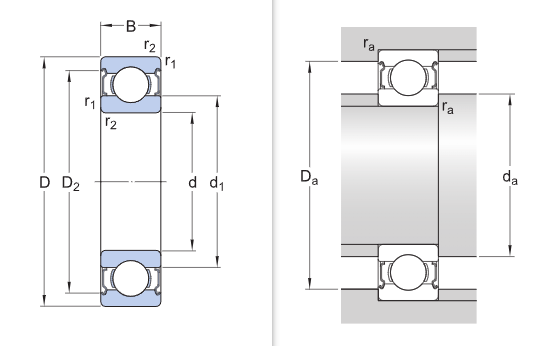

Product model D/W R0-2Z
d 1.191 mm
D 3.967 mm
B 2.38 mm
Limiting speed 110000 r/min
d1 ≈2.15 mm
d2 ≈2.15 mm
D2 ≈3.5 mm
C 0.787 mm
Chamfer size (r1,2) min.0.1 mm
da max.2.1 mm
Da max.3.6 mm
ra max.0.1 mm
pu 0.001 kN
Reference speed 220 000 r/min
kr 0.02
f0 6.4
Radial runout National Standard
Dimensional tolerance National Standard
