INA.HN.VU140179 VU140179-ZT Slewing Ring Bearing China Stock 124.5*234*35mm

Release time: 2024-05-29  Click: 138


Part NumberVU140179 VU140179-ZT
di124,5 mm
Da234 mm

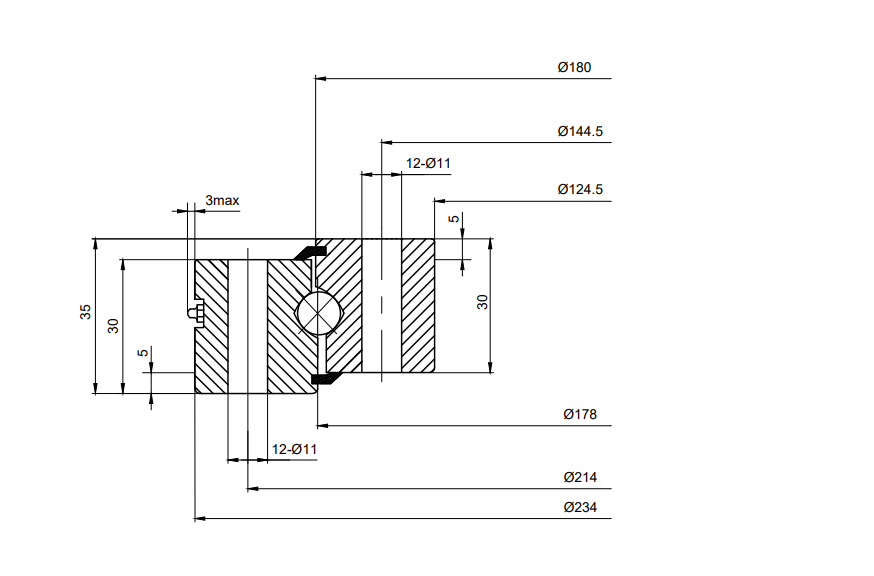

DaZT232 mm Valpid for bearings with centring (suffix ZT) Centring lengths (T, t) (see dimension drawing) Tolerance: -IT8
Di178 mm
da180 mm
dB11 mm
diZT126,5 mm Valpid for bearings with centring (suffix ZT) Centring lengths (T, t) (see dimension drawing) Tolerance: +IT8
H126,5 mm Valpid for bearings with centring (suffix ZT) Centring lengths (T, t) (see dimension drawing) Tolerance: +IT8
h30 mm
La214 mm
Li144,5 mm
na12
ni12
T5 mm
t5 mm
umax3 mm
weight(w)7 kg
Maximum permissible radial load against friction lock(Frper)33600 N
Basic dynamic load rating, axial(Ca)92000 N
Basic static load rating, axial(C0a)92000 N
Basic dynamic load rating, radial(Cr)83000 N
Basic static load rating, radial(C0r)169000 N
Min. radial bearing clearance0,04
Maximum radial bearing clearance0,14
Min. axial tilting clearance0,07
Maximum axial tilting clearance0,23
