INA.HN.VU200220 VU 200220 Slewing Ring Bearing China Stock 138*302*46mm_

Location：Home > News

INA.HN.VU200220 VU 200220 Slewing Ring Bearing China Stock 138*302*46mm_

Release time: 2024-05-29  Click: 162


Specifications
Part NumberVU200220
di138 mm
Da302 mm

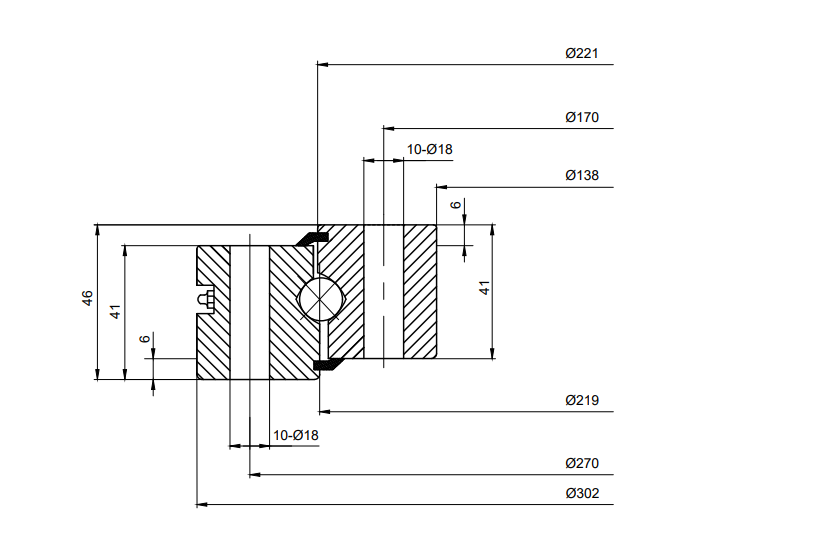

DaZT300 mm Valpid for bearings with centring (suffix ZT) Centring lengths (T, t) (see dimension drawing) Tolerance: -IT8
Di219 mm
da221 mm
dB18 mm
diZT140 mm Valpid for bearings with centring (suffix ZT) Centring lengths (T, t) (see dimension drawing) Tolerance: +IT8
H46 mm
h41 mm
La270 mm
Li170 mm
na10
ni10
T6 mm
t6 mm
umax
weight(w)16 kg
Maximum permissible radial load against friction lock(Frper)78000 N
Basic dynamic load rating, axial(Ca)160000 N
Basic static load rating, axial(C0a)510000 N
Basic dynamic load rating, radial(Cr)146000 N
Basic static load rating, radial(C0r)235000 N
Min. radial bearing clearance0,05
Maximum radial bearing clearance0,2
Min. axial tilting clearance0,08
Maximum axial tilting clearance0,33
